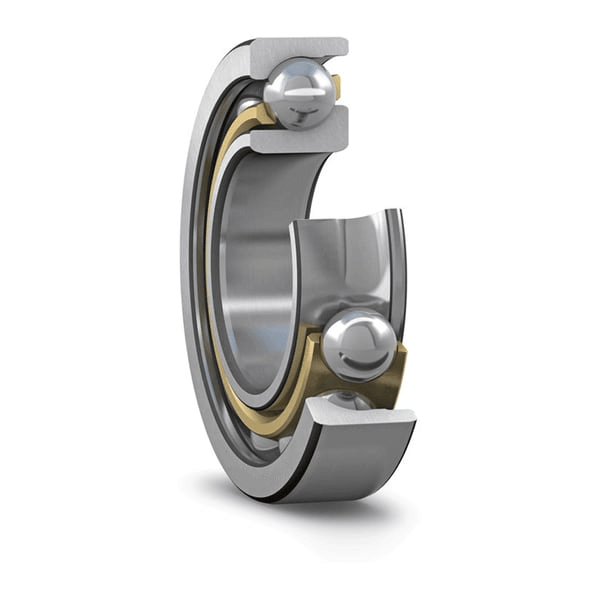

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
d | 380 mm | Bore diameter |
---|---|---|
D | 520 mm | Outside diameter |
B | 65 mm | Width |
d1 | ≈ 435 mm | Shoulder diameter of inner ring (large side face) |
d2 | ≈ 411 mm | Shoulder diameter of inner ring (small side face) |
D1 | ≈ 465 mm | Shoulder diameter of outer ring (large side face) |
a | 222 mm | Distance side face to pressure point |
r1,2 | min. 4 mm | Chamfer dimension |
r3,4 | min. 1 mm | Chamfer dimension |
da | min. 395 mm | Diameter of shaft abutment |
---|---|---|
Da | max. 505 mm | Abutment diameter housing |
Db | max. 514 mm | Diameter of housing abutment |
ra | max. 3 mm | Radius of fillet |
rb | max. 1 mm | Radius of fillet |
Basic dynamic load rating | C | 345 kN |
---|---|---|
Basic static load rating | C0 | 610 kN |
Fatigue load limit | Pu | 12.9 kN |
Reference speed | 1 200 r/min | |
Limiting speed | 1 200 r/min | |
Minimum axial load factor | A | 6.56 |
Minimum radial load factor | kr | 0.081 |
Limiting value | e | 1.14 |
Calculation factor (single, tandem) | X | 0.35 |
---|---|---|
Calculation factor (single, tandem) | Y0 | 0.26 |
Calculation factor (single, tandem) | Y2 | 0.57 |
Calculation factor (back-to-back, face-to-face) | X | 0.57 |
---|---|---|
Calculation factor (back-to-back, face-to-face) | Y0 | 0.52 |
Calculation factor (back-to-back, face-to-face) | Y1 | 0.55 |
Calculation factor (back-to-back, face-to-face) | Y2 | 0.93 |
