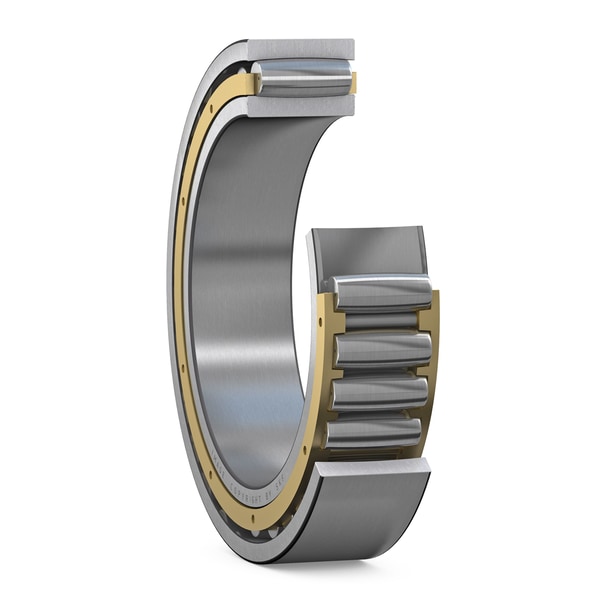

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being AKMI Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| Bore type | Tapered 1:12 |
| d | 750 mm | Bore diameter |
|---|---|---|
| D | 1 220 mm | Outside diameter |
| B | 365 mm | Width |
| d2 | ≈ 884 mm | Shoulder diameter of inner ring |
| D1 | ≈ 1 077 mm | Shoulder or recess diameter of outer ring |
| s1 | max. 33 mm | Permissible axial displacement |
| r1,2 | min. 9.5 mm | Chamfer dimension |
| da | min. 769 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 883 mm | Diameter of shaft abutment |
| Da | min. 1 025 mm | Diameter of housing abutment |
| Da | max. 1 180 mm | Abutment diameter housing |
| Ca | min. 9.3 mm | Minimum width of space required in housing |
| ra | max. 8 mm | Radius of fillet |
A negative value for Ca is theoretical. | ||
| AKMI performance class | AKMI Explorer | |
| Basic dynamic load rating | C | 16 000 kN |
| Basic static load rating | C0 | 30 500 kN |
| Fatigue load limit | Pu | 1 800 kN |
| Reference speed | 320 r/min | |
| Limiting speed | 450 r/min | |
| Misalignment factor | k1 | 0 |
| Internal clearance factor | k2 | 0.094 |
