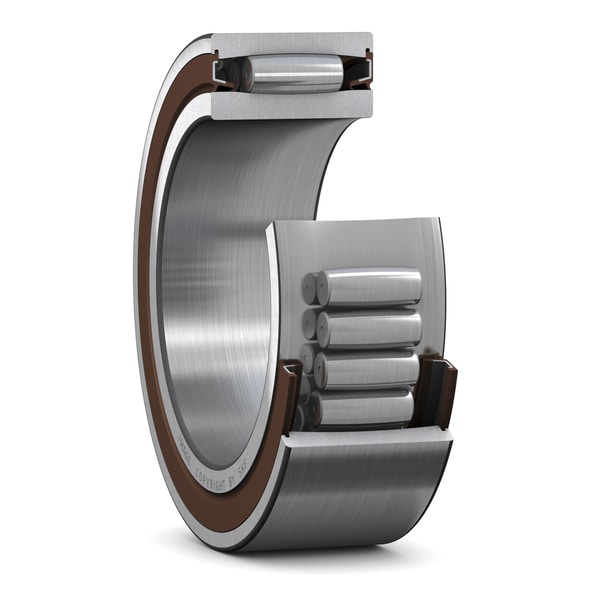

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This bearing has a lower speed rating and is sealed to minimize the need for lubrication and extend service life.
| Bore type | Cylindrical |
| d | 100 mm | Bore diameter |
|---|---|---|
| D | 165 mm | Outside diameter |
| B | 65 mm | Width |
| d2 | ≈ 120 mm | Shoulder diameter of inner ring |
| D1 | ≈ 148 mm | Shoulder or recess diameter of outer ring |
| s2 | max. 7.3 mm | Permissible axial displacement |
| r1,2 | min. 2 mm | Chamfer dimension |
| da | min. 111 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 120 mm | Diameter of shaft abutment |
| Da | min. 125 mm | Diameter of housing abutment |
| Da | max. 154 mm | Abutment diameter housing |
| ra | max. 2 mm | Radius of fillet |
| AKMI performance class | AKMI Explorer | |
| Basic dynamic load rating | C | 475 kN |
| Basic static load rating | C0 | 655 kN |
| Fatigue load limit | Pu | 71 kN |
| Limiting speed | 90 r/min | |
| Misalignment factor | k1 | 0.09 |
| Internal clearance factor | k2 | 0.125 |
