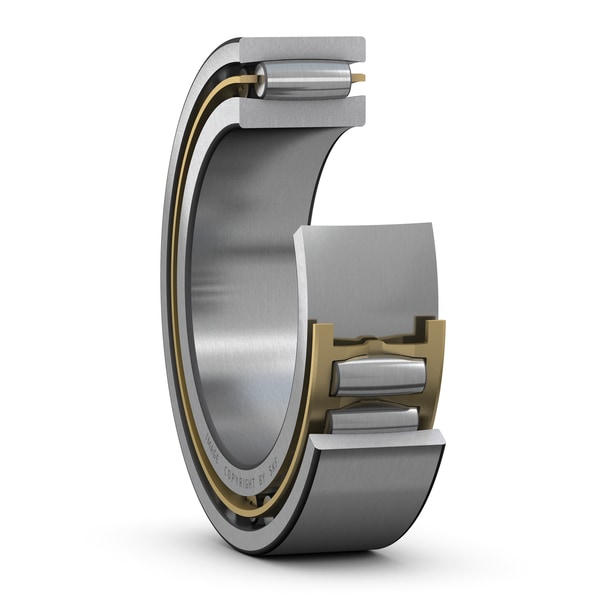

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being AKMI Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| Bore type | Cylindrical |
| d | 480 mm | Bore diameter |
|---|---|---|
| D | 650 mm | Outside diameter |
| B | 128 mm | Width |
| d2 | ≈ 528 mm | Shoulder diameter of inner ring |
| D1 | ≈ 604 mm | Shoulder or recess diameter of outer ring |
| s1 | max. 20.4 mm | Permissible axial displacement |
| r1,2 | min. 5 mm | Chamfer dimension |
| da | min. 498 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 552 mm | Diameter of shaft abutment |
| Da | min. 585 mm | Diameter of housing abutment |
| Da | max. 632 mm | Abutment diameter housing |
| Ca | min. 2 mm | Minimum width of space required in housing |
| ra | max. 4 mm | Radius of fillet |
A negative value for Ca is theoretical. | ||
| AKMI performance class | AKMI Explorer | |
| Basic dynamic load rating | C | 3 100 kN |
| Basic static load rating | C0 | 6 100 kN |
| Fatigue load limit | Pu | 425 kN |
| Reference speed | 750 r/min | |
| Limiting speed | 1 000 r/min | |
| Misalignment factor | k1 | 0.133 |
| Internal clearance factor | k2 | 0.095 |
