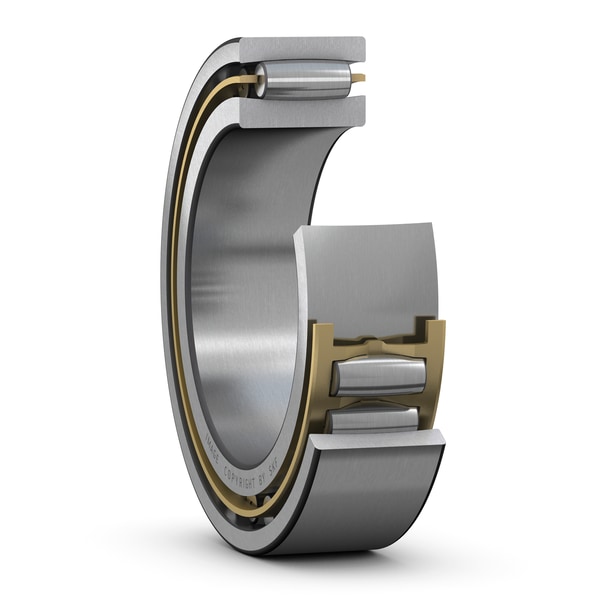

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being AKMI Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
| Bore type | Cylindrical |
| d | 180 mm | Bore diameter |
|---|---|---|
| D | 320 mm | Outside diameter |
| B | 112 mm | Width |
| d2 | ≈ 228 mm | Shoulder diameter of inner ring |
| D1 | ≈ 289 mm | Shoulder or recess diameter of outer ring |
| s1 | max. 27.3 mm | Permissible axial displacement |
| r1,2 | min. 4 mm | Chamfer dimension |
| da | min. 197 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 249 mm | Diameter of shaft abutment |
| Da | min. 271 mm | Diameter of housing abutment |
| Da | max. 303 mm | Abutment diameter housing |
| Ca | min. 3.2 mm | Minimum width of space required in housing |
| ra | max. 3 mm | Radius of fillet |
A negative value for Ca is theoretical. | ||
| AKMI performance class | AKMI Explorer | |
| Basic dynamic load rating | C | 1 530 kN |
| Basic static load rating | C0 | 2 200 kN |
| Fatigue load limit | Pu | 193 kN |
| Reference speed | 1 500 r/min | |
| Limiting speed | 2 000 r/min | |
| Misalignment factor | k1 | 0.107 |
| Internal clearance factor | k2 | 0.104 |
