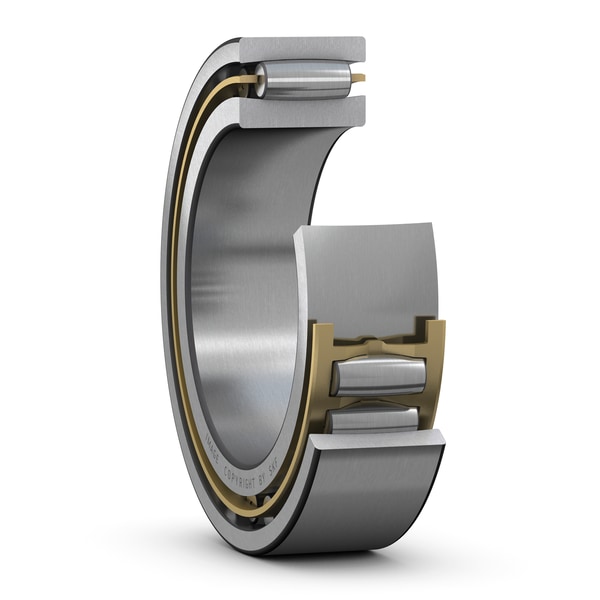

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being AKMI Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
Bore type | Cylindrical |
d | 170 mm | Bore diameter |
---|---|---|
D | 260 mm | Outside diameter |
B | 67 mm | Width |
d2 | ≈ 195 mm | Shoulder diameter of inner ring |
D1 | ≈ 236 mm | Shoulder or recess diameter of outer ring |
s1 | max. 19 mm | Permissible axial displacement |
r1,2 | min. 2.1 mm | Chamfer dimension |
da | min. 181 mm | Diameter of shaft abutment |
---|---|---|
da | max. 210 mm | Diameter of shaft abutment |
Da | min. 226 mm | Diameter of housing abutment |
Da | max. 249 mm | Abutment diameter housing |
Ca | min. 1.2 mm | Minimum width of space required in housing |
ra | max. 2 mm | Radius of fillet |
A negative value for Ca is theoretical. |
AKMI performance class | AKMI Explorer | |
Basic dynamic load rating | C | 750 kN |
Basic static load rating | C0 | 1 080 kN |
Fatigue load limit | Pu | 100 kN |
Reference speed | 2 200 r/min | |
Limiting speed | 2 800 r/min | |
Misalignment factor | k1 | 0.105 |
Internal clearance factor | k2 | 0.117 |
