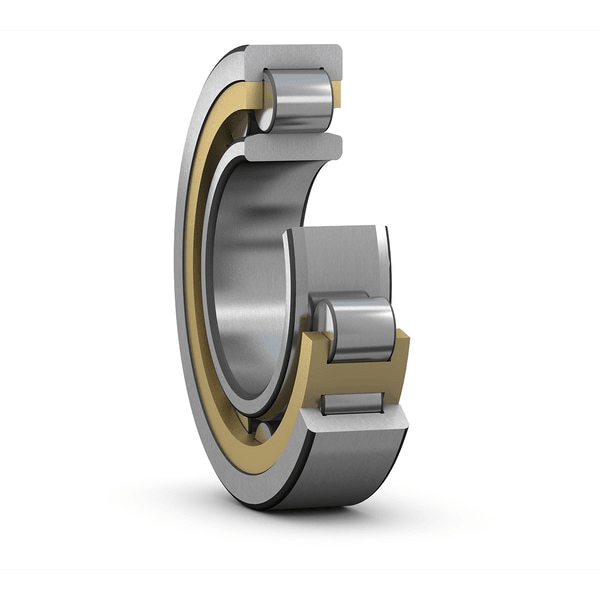

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| d | 160 mm | Bore diameter |
|---|---|---|
| D | 340 mm | Outside diameter |
| B | 114 mm | Width |
| D1 | ≈ 286 mm | Shoulder diameter of outer ring |
| F | 204 mm | Raceway diameter of inner ring |
| r1,2 | min. 4 mm | Chamfer dimension |
| r3,4 | min. 4 mm | Chamfer dimension |
| s | max. 11 mm | Permissible axial displacement |
| da | min. 177 mm | Diameter of spacer sleeve |
|---|---|---|
| da | max. 199 mm | Diameter of spacer sleeve |
| db | min. 207 mm | Diameter of shaft abutment |
| Da | max. 321.9 mm | Diameter of housing abutment |
| ra | max. 3 mm | Radius of fillet |
| rb | max. 3 mm | Radius of fillet |
| Basic dynamic load rating | C | 1 250 kN |
|---|---|---|
| Basic static load rating | C0 | 1 730 kN |
| Fatigue load limit | Pu | 173 kN |
| Reference speed | 1 800 r/min | |
| Limiting speed | 3 600 r/min | |
| Minimum load factor | kr | 0.38 |
| Limiting value | e | 0.3 |
| Calculation factor | Y | 0.4 |
