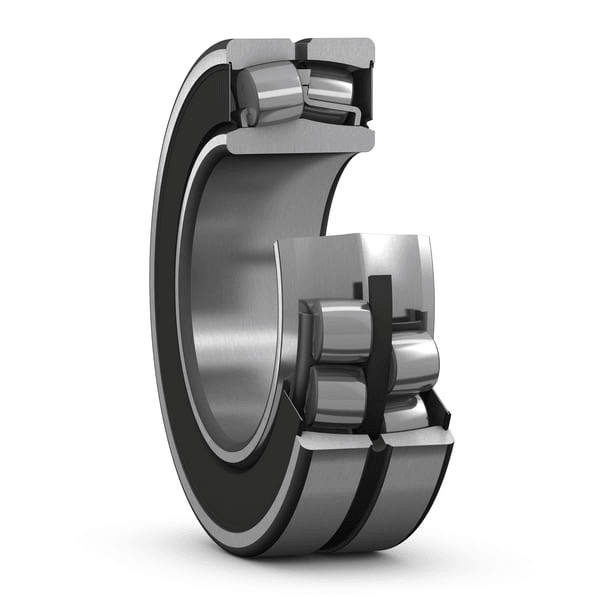

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.
| Bore type | Tapered 1:30 |
| d | 1 100 mm | Bore diameter |
|---|---|---|
| tΔdmp | 0.0 – 0.125 mm | Deviation limits of mid-range bore diameter |
| tΔSL | 0.0 – 0.115 mm | Deviation limits of tapered slope |
| D | 1 730 mm | Outside diameter |
| tΔDmp | -0.2 – 0.0 mm | Deviation limits of mid-range outside diameter |
| B | 660 mm | Width |
| tΔBs | -1.25 – 0.0 mm | Deviation limits of ring width |
| d2 | ≈ 1 227 mm | Shoulder diameter of inner ring |
| D1 | ≈ 1 586 mm | Shoulder/recess diameter of outer ring |
| b | 22.3 mm | Width of lubrication groove |
| K | 12 mm | Diameter of lubrication hole |
| r1,2 | min. 15 mm | Chamfer dimension |
Normal | ISO tolerance class for dimensions |
| Da | max. 1 672 mm | Diameter of housing abutment |
|---|---|---|
| ra | max. 12 mm | Radius of fillet |
| AKMI performance class | AKMI Explorer | |
| Basic dynamic load rating | C | 35 133 kN |
| Basic static load rating | C0 | 71 000 kN |
| Fatigue load limit | Pu | 3 750 kN |
| Limiting speed | 20 r/min | |
| Limiting value | e | 0.33 |
| Calculation factor | Y1 | 2 |
| Calculation factor | Y2 | 3 |
| Calculation factor | Y0 | 2 |
| Range of section height at inner ring of assembled bearing | tKia | 100 µm |
|---|---|---|
| Range of section height at outer ring of assembled bearing | tKea | 220 µm |
| ISO tolerance class for geoal tolerances | Normal |
| Minimum initial clearance | 1 300 µm |
| Maximum initial clearance | 1 485 µm |
General bearing specifications
Bearing interfaces
