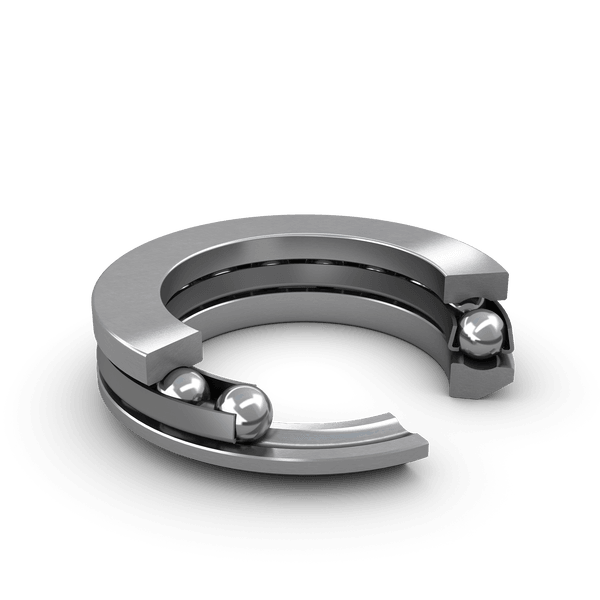

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.
| d | 120 mm | Bore diameter |
|---|---|---|
| D | 210 mm | Outside diameter |
| H | 74.1 mm | Height |
| H1 | 80 mm | Height bearing including seat washer |
| d1 | ≈ 205 mm | Outside diameter shaft washer |
| D1 | ≈ 123 mm | Inner diameter housing washer |
| D2 | 165 mm | Inner diameter seat washer |
| D3 | 220 mm | Outside diameter seat washer |
| C | 22 mm | Height seat washer |
| R | 160 mm | Radius sphered housing washer |
| s | 63 mm | Centre height housing washer sphere |
| r1,2 | min. 2.1 mm | Chamfer dimension washer |
| da | min. 173 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 165 mm | Abutment diameter housing |
| ra | max. 1 mm | Fillet radius |
| Basic dynamic load rating | C | 332 kN |
|---|---|---|
| Basic static load rating | C0 | 980 kN |
| Fatigue load limit | Pu | 28 kN |
| Reference speed | 1 000 r/min | |
| Limiting speed | 1 500 r/min | |
| Minimum load factor | A | 5 |
| Seat washer | U 324 |
