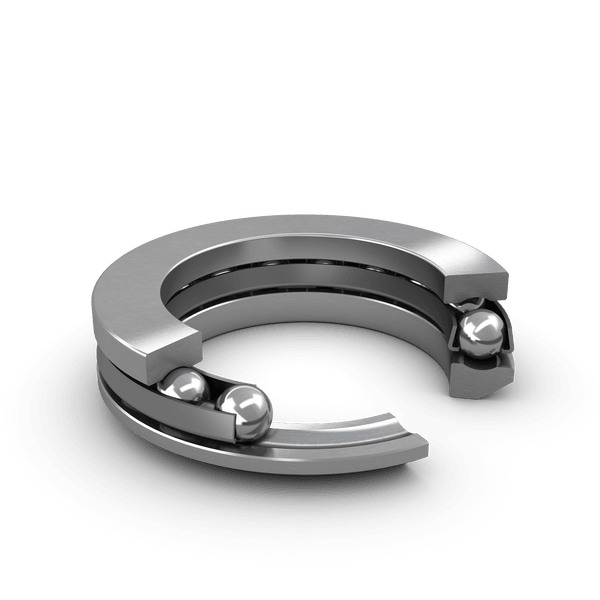

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.
| d | 100 mm | Bore diameter |
|---|---|---|
| D | 210 mm | Outside diameter |
| H | 90 mm | Height |
| H1 | 98 mm | Height bearing including seat washer |
| d1 | ≈ 205 mm | Outside diameter shaft washer |
| D1 | ≈ 103 mm | Inner diameter housing washer |
| D2 | 155 mm | Inner diameter seat washer |
| D3 | 220 mm | Outside diameter seat washer |
| C | 27 mm | Height seat washer |
| R | 160 mm | Radius sphered housing washer |
| s | 50 mm | Centre height housing washer sphere |
| r1,2 | min. 3 mm | Chamfer dimension washer |
| da | min. 165 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 155 mm | Abutment diameter housing |
| ra | max. 2 mm | Fillet radius |
| Basic dynamic load rating | C | 371 kN |
|---|---|---|
| Basic static load rating | C0 | 1 060 kN |
| Fatigue load limit | Pu | 31.5 kN |
| Reference speed | 950 r/min | |
| Limiting speed | 1 300 r/min | |
| Minimum load factor | A | 5.8 |
| Seat washer | U 420 |
