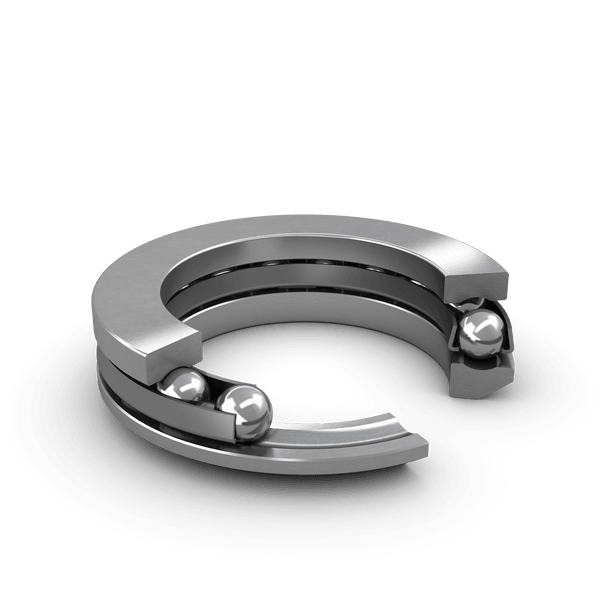

Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.
| d | 85 mm | Bore diameter |
|---|---|---|
| D | 125 mm | Outside diameter |
| H | 33.1 mm | Height |
| H1 | 37 mm | Height bearing including seat washer |
| d1 | ≈ 125 mm | Outside diameter shaft washer |
| D1 | ≈ 88 mm | Inner diameter housing washer |
| D2 | 105 mm | Inner diameter seat washer |
| D3 | 130 mm | Outside diameter seat washer |
| C | 11 mm | Height seat washer |
| R | 100 mm | Radius sphered housing washer |
| s | 52 mm | Centre height housing washer sphere |
| r1,2 | min. 1 mm | Chamfer dimension washer |
| da | min. 109 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 105 mm | Abutment diameter housing |
| ra | max. 1 mm | Fillet radius |
| Basic dynamic load rating | C | 97.5 kN |
|---|---|---|
| Basic static load rating | C0 | 275 kN |
| Fatigue load limit | Pu | 9 kN |
| Reference speed | 2 000 r/min | |
| Limiting speed | 3 000 r/min | |
| Minimum load factor | A | 0.39 |
| Seat washer | U 217 |
