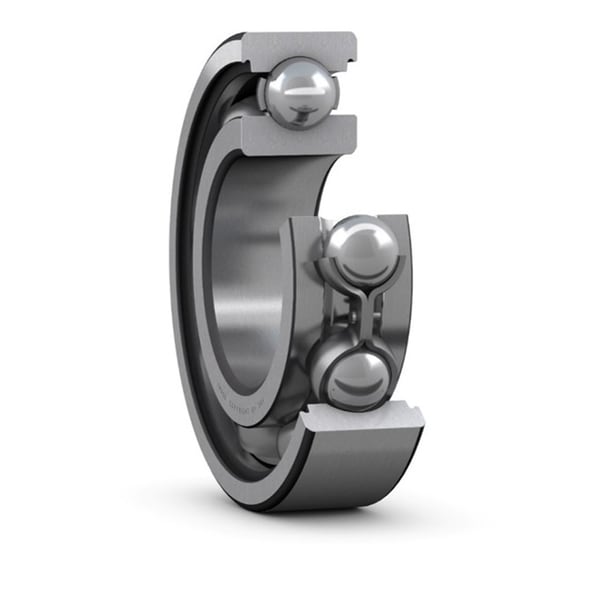

Stainless steel single row deep groove ball bearings provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Bore diameter | 2.5 mm |
Outside diameter | 6 mm |
Width | 1.8 mm |
Basic dynamic load rating | 0.117 kN |
Basic static load rating | 0.036 kN |
Reference speed | 170 000 r/min |
Limiting speed | 110 000 r/min |
Filling slots | Without |
Number of rows | 1 |
Locating feature, bearing outer ring | None |
Bore type | Cylindrical |
Cage | Sheet metal |
Matched arrangement | No |
Radial internal clearance | CN |
Material, bearing | Stainless steel |
Coating | Without |
Sealing | Without |
Lubricant | None |
Relubrication feature | Without |
