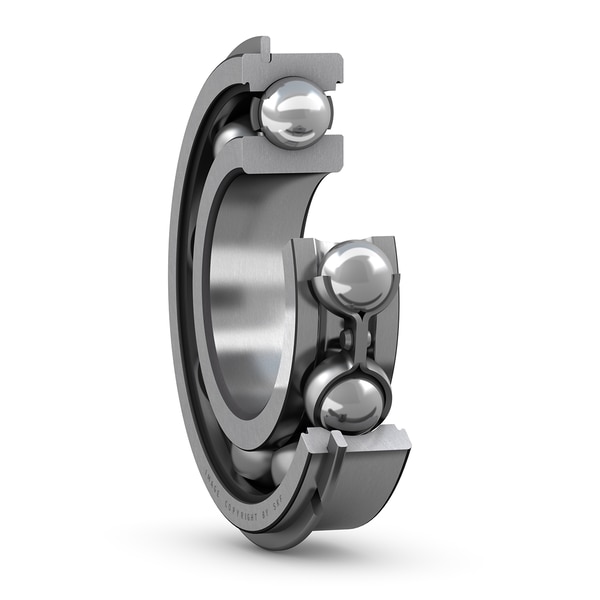

Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
Bore diameter | 55 mm |
Outside diameter | 90 mm |
Width | 18 mm |
Basic dynamic load rating | 29.6 kN |
Basic static load rating | 21.2 kN |
Reference speed | 16 000 r/min |
Limiting speed | 10 000 r/min |
Filling slots | Without |
Number of rows | 1 |
Bore type | Cylindrical |
Matched arrangement | No |
Radial internal clearance | C3 |
Material, bearing | Bearing steel |
Coating | Without |
Sealing | Without |
Lubricant | None |
Relubrication feature | Without |
Product net weight | 0.39 kg |
eClass code | 23-05-08-01 |
UNSPSC code | 31171504 |
