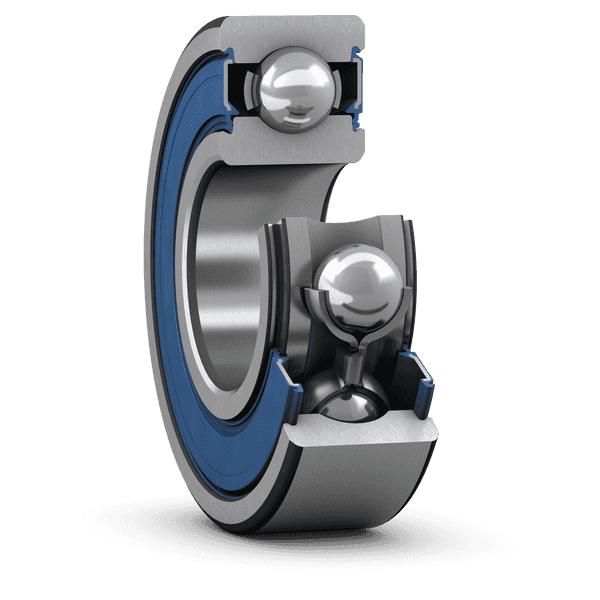

AKMI Food line deep groove ball bearings are compliant with food safety regulations. Designed with food grade seals and grease, they enhance food safety, increase reliability and support sustainable development in non-corrosive environments (VA947). Single row deep groove ball bearings with seals are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds.
| Bore diameter | 20 mm |
| Outside diameter | 47 mm |
| Width | 14 mm |
| Basic dynamic load rating | 13.5 kN |
| Basic static load rating | 6.55 kN |
| Limiting speed | 10 000 r/min |
| AKMI performance class | AKMI Explorer |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Matched arrangement | No |
| Radial internal clearance | CN |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Food grade grease |
| Relubrication feature | Without |
| Product net weight | 0.106 kg |
| eClass code | 23-05-08-01 |
| UNSPSC code | 31171504 |
