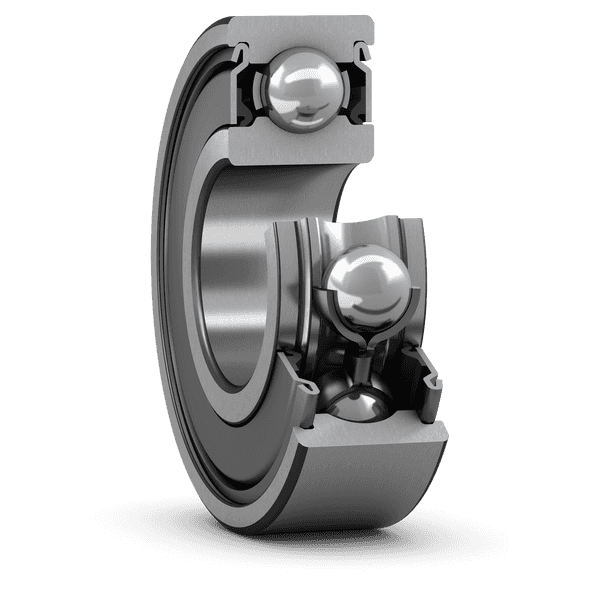

AKMI Deep groove ball bearings for highly contaminated environments are equipped with robust steel shields and strong rubber lips sealing against precision-ground counterfaces on the inner ring. The seals are designed to protect against fluid and solid contaminants. Variants with the designation suffix AG provide enhanced corrosion resistance of the seal.
Bore diameter | 20 mm |
Outside diameter | 47 mm |
Width | 14 mm |
Basic dynamic load rating | 13.5 kN |
Basic static load rating | 6.55 kN |
Limiting speed | 4 000 r/min |
AKMI performance class | AKMI Explorer |
Filling slots | Without |
Number of rows | 1 |
Locating feature, bearing outer ring | None |
Bore type | Cylindrical |
Cage | Sheet metal |
Matched arrangement | No |
Radial internal clearance | C3 |
Material, bearing | Bearing steel |
Coating | Without |
Sealing | Seal on both sides |
Sealing type | Contact |
Lubricant | Grease |
Relubrication feature | Without |
Product net weight | 0.112 kg |
eClass code | 23-05-08-01 |
UNSPSC code | 31171504 |
